Kolesa in oprema

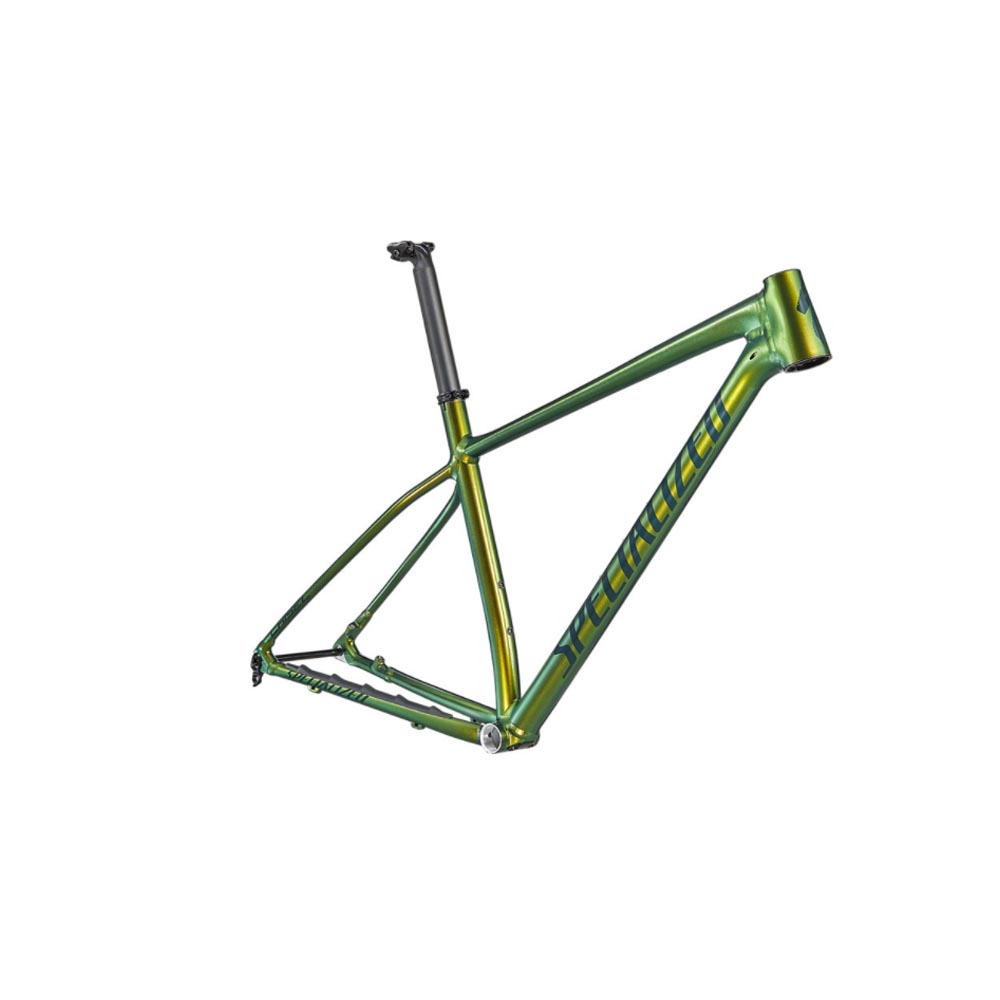

CHISEL FRAMESET gloss cameleon snake

CHISEL FRAMESET 2021

999,00

Opis

  • The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.And with this frame option, you can build your new Chisel exactly how you like. Top-end build for a durable XC shredder? Oh, yeah. Or maybe a budget-friendly one that you can upgrade later? Easy. The Chisel frame is the perfect canvas to start painting your new path to XC racing.
    • [The Chisel’s all-new frame utilizes our D’Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame’s balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.]

toggle title_open=”Geometrija” title_closed=”Prikaži geometrijo” hide=”yes” border=”no” style=”default” excerpt_length=”0″ read_more_text=”Read More” read_less_text=”Read Less” include_excerpt_html=”no”]

Size XS S M L XL
BB Drop 68 63 63 63 63
BB Height 304 309 309 309 309
Bike Standover Height 732 762 792 816 847
Chainstay Length 432 432 432 432 432
Fork Length, Full 486 506 506 506 506
Fork Rake/Offset 44 44 44 44 44
Front Center 647 674 699 730 760
Head Tube Angle 68 68 68 68 68
Head Tube Length 95 95 95 110 125
Reach 385 405 430 455 480
Seat Tube Angle 74 74 74 74 74
Seat Tube Length 367 400 430 470 520
Stack 591 605 605 619 633
Top Tube Length, Horizontal 555 578 603 632 661
Trail 103 103 103 103 103
Wheelbase 1070 1099 1124 1154 1185

[/toggle]

Komentarji

Tehnične specifikacije

FRAME Specialized D’Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
SEAT POST Specialized Alloy, Single Bolt, 30.9mm
SEAT BINDER Specialized Alloy, 34.9mm
