Kolesa in oprema

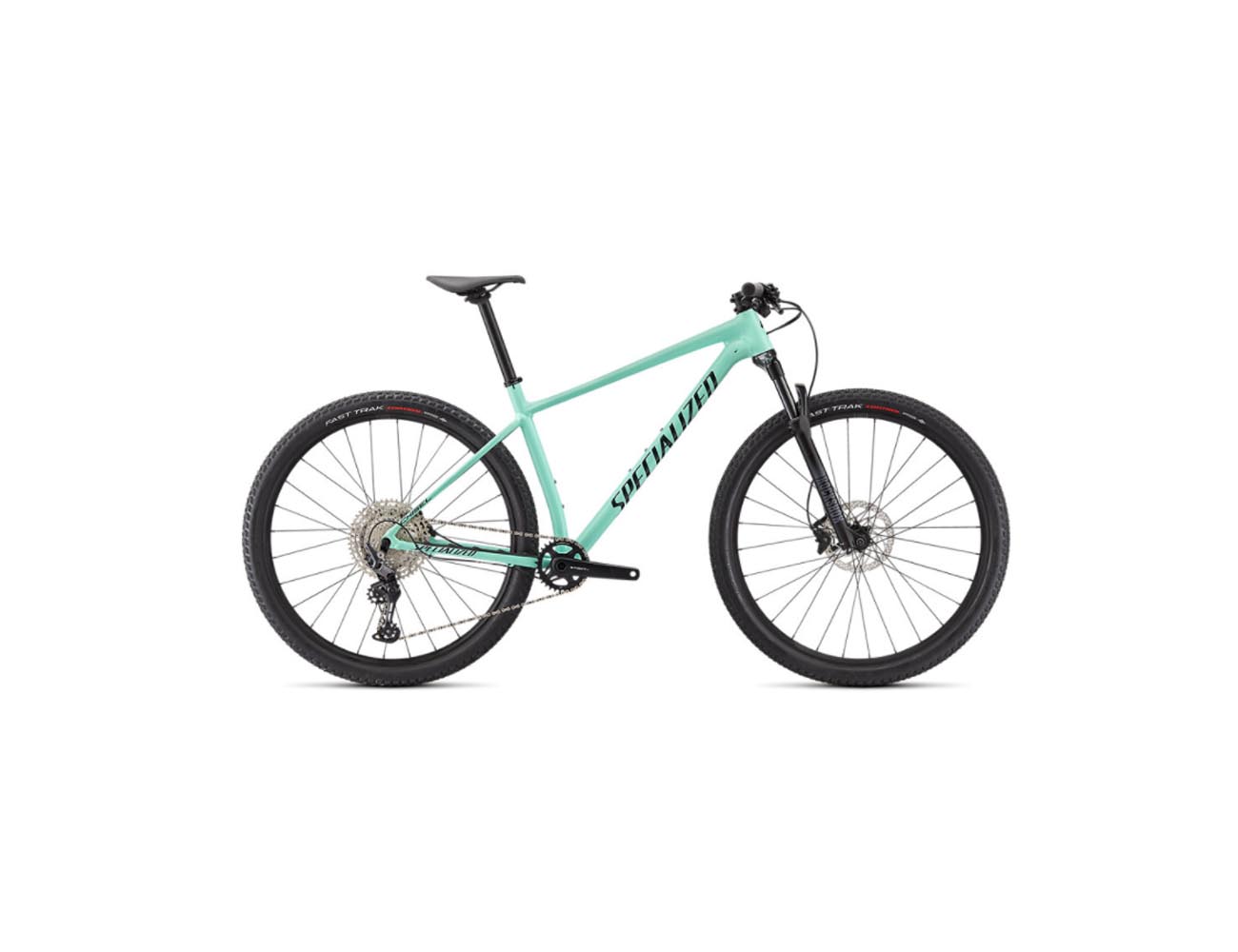

CHISEL gloss oasis - 10%

CHISEL 2021

1.529,10 €

Preveri dobavljivost
Kategorije: Oznake:

Opis

The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

This Chisel comes spec’d with Shimano’s tried and true Deore 1×12 speed drivetrain and MT400 hydraulic disc brakes, a RockShox Judy Silver fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.



  • The Chisel’s all-new frame utilizes our D’Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame’s balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.

Prikaži geometrijo

Size XS S M L XL
BB Drop 68 63 63 63 63
BB Height 304 309 309 309 309
Bike Standover Height 732 762 792 816 847
Chainstay Length 432 432 432 432 432
Fork Length, Full 486 506 506 506 506
Fork Rake/Offset 44 44 44 44 44
Front Center 647 674 699 730 760
Head Tube Angle 68 68 68 68 68
Head Tube Length 95 95 95 110 125
Reach 385 405 430 455 480
Seat Tube Angle 74 74 74 74 74
Seat Tube Length 367 400 430 470 520
Stack 591 605 605 619 633
Top Tube Length, Horizontal 555 578 603 632 661
Trail 103 103 103 103 103
Wheelbase 1070 1099 1124 1154 1185

Komentarji

Tehnične specifikacije

FRAME Specialized D’Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
FORK RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS – 80mm travel)
STEM Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
TAPE Specialized Trail Grips
HANDLEBARS Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
FRONT BRAKE Shimano M4100, 2-piston caliper, hydraulic disc
REAR BRAKE Shimano M4100, 2-piston, 180/160mm
REAR DERAILLEUR Shimano Deore, M6100, 12pd, Shadow Plus
SHIFT LEVERS Shimano Deore, M6100, I-Spec EV, 12 speed
CASSETTE Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
CHAINKMC X12, 12-speed w/ Missing Link™
CRANKSET Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring
BOTTOM BRACKET BSA for 24mm spindle
RIMS Alloy, Offset Design, Tubeless Ready, 25mm internal width, 28h
FRONT HUB Shimano MT410-B, Centerlock 28h, 15×110 Boost
REAR HUB Shimano MT410-B, Centerlock 28h, 12×148 Boost, Microspline
FRONT TIRE Fast Trak, Control casing,
GRIPTON® compound, 60 TPI, 2Bliss Ready, 29×2.3″
REAR TIRE Fast Trak, Control casing,
GRIPTON® compound, 60 TPI, 2Bliss Ready, 29×2.3″
SPOKES Stainless, 14g
INNER TUBES Presta, 60mm valve
SADDLE Body Geometry Power Sport, steel rails
SEATPOST Alloy, 12mm offset, 2-bolt clamp, 30.9mm
SEAT BINDER Specialized Alloy, 34.9mm
