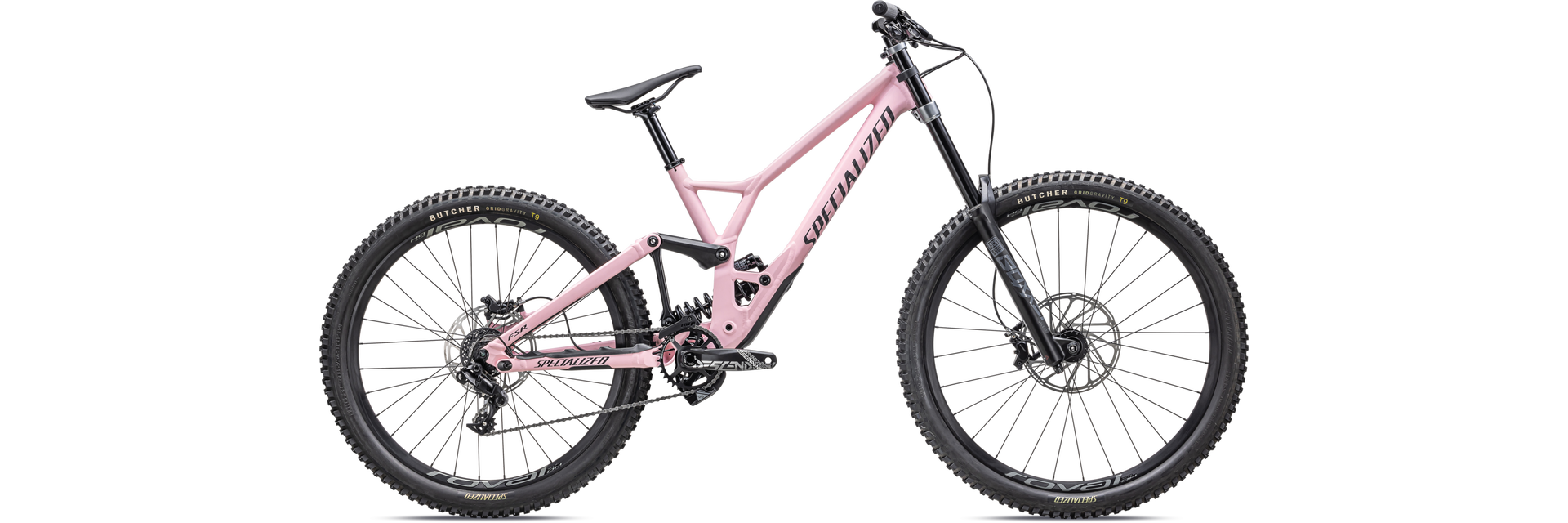

Ista zasnova, ki je v svoji prvi sezoni na dirkah svetovnega pokala dosegla neverjeten uspeh, set okvirja Demo Race postavlja v ospredje združljivost 27,5/29-palčnih zadnjih koles pri iskanju optimalnega ravnovesja hitrosti, oprijema in manevriranja, hkrati pa omogoča neprekosljivo vsestranskost.
Amortizer Ohlins TTX 22 M vam daje prednost zaradi popolnosti vzmetenja. Samo namestite svoj preizkušen dirkalni komplet opreme, preden nadaljujete, kjer ste končali, in obstaja velika verjetnost, da boste spet osvojili nekaj stopničk na svoji poti.
| S2 | S3 | S4 | |
|---|---|---|---|
| Crank Length | 165 | 165 | 165 |
| Seatpost Length | 367 | 367 | 367 |
| Handlebar Width | 800 | 800 | 800 |
| Stem Length | 45 | 45 | 45 |
| Saddle Width | 130 | 130 | 130 |
| Stack | 632 | 632 | 632 |
| Stack (29 mid) | 629 | 629 | 629 |
| Stack (27.5 mid) | 635 | 635 | 635 |
| Reach | 426 | 446 | 466 |
| Reach (29 mid) | 430 | 450 | 470 |
| Reach (27.5 mid) | 423 | 443 | 463 |
| Head-Tube Length | 105 | 105 | 105 |
| Head-Tube Angle | 62.8 | 62.8 | 62.8 |
| Head-Tube Angle (29 mid) | 63.2 | 63.2 | 63.2 |
| Head-Tube Angle (27.5 mid) | 62.5 | 62.5 | 62.5 |
| B-B Height | 350 | 350 | 350 |
| B-B Height (29 mid) | 355 | 355 | 355 |
| B-B Height (27.5 mid) | 345 | 345 | 345 |
| B-B Drop | 25 | 25 | 25 |
| Trail | 130 | 130 | 130 |
| Trail (29 mid) | 127 | 127 | 127 |
| Trail (27.5 mid) | 132 | 132 | 132 |
| Fork Rake/Offset | 56 | 56 | 56 |
| Front-Center | 801 | 821 | 841 |
| Front-Center (29 mid) | 801 | 821 | 841 |
| Front-Center (27.5 mid) | 801 | 821 | 841 |
| Chain-Stay Length (29) | 448 | 448 | 448 |
| Chain-Stay Length (27.5) | 438 | 438 | 438 |
| Chain-Stay Length (mid) | 443 | 443 | 443 |
| Wheelbase (27.5) | 1239 | 1259 | 1279 |
| Wheelbase (29) | 1249 | 1269 | 1289 |
| Wheelbase (mid) | 1244 | 1264 | 1284 |
| Seat-Tube Length | 394 | 420 | 420 |
| Seat-Tube Angle | 78.2 | 76.8 | 76.8 |
| Seat-Tube Angle (29 mid) | 78.5 | 77.1 | 77.1 |
| Seat-Tube Angle (27.5 mid) | 77.8 | 76.4 | 76.4 |
Tehnične specifikacije
- Frameset
-
- Seat Binder
- SEAT COLLAR, KCNC, SPL-SC02-349-02, EXTRUDED, 7075-T73, 34.9MM, 10B21, BLACK ZINC BOLT, BOLT CLAMP TYPE
-
- Frame
- M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
- Suspension
-
- Rear Shock
- Ohlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225×75
-
- Fork
- Ohlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel
- Cockpit
-
- Handlebars
- Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
-
- Stem
- Descendant 35mm Direct Mount Stem, 50mm length
-
- Grips
- Deity Grips
-
- Saddle
- Body Geometry Henge DH, hollow titanium rails, 130mm
-
- SeatPost
- Thomson, alloy, straight, 12-degree clamp
- Brakes
-
- Front Brake
- BRAKE, MAGURA, 87270700155, FRONT, MT7N MY17 L HANDLEBAR CLAMP 2HC-W REACH W/TOOL 4 PSTN 90DEG GREY RING: SIL SPORT 8.S DISC TUBE 2.2 BLACK -25DEG 850MM
-
- Rear Brake
- BRAKE, MAGURA, 87270700282, REAR, MT7N MY17 R SHIFT MIX 3 2HC-W REACH W/TOOL 4 PSTN 90DEG GREY RING: SIL DISC TUBE 2.2 BLACK -25DEG 2000MM QM44(PM180-203) W/EASYROUTE X 1PC 2 SIDES MASTER COVER
- Drivetrain
-
- Chainrings
- Steel, 30T
-
- Chain
- Sram PC1130 w/ Powerlink, 11-speed
-
- Shift Levers
- SRAM X01 DH, trigger, 7-speed
-
- Crankset
- SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
-
- Rear Derailleur
- SRAM X01 DH, 7-speed, trigger
-
- Cassette
- SRAM X01 DH, 7-speed, 10-24t
-
- Bottom Bracket
- SRAM DUB, 83mm
- Wheels
-
- Front Hub
- Alloy, sealed cartridge bearings, 20x110mm, 28h
-
- Rims
- Roval 29″ Alloy DH, 28mm internal width, 28h, tubeless ready
-
- Inner Tubes
- Standard, Presta Valve
-
- Rear Hub
- REAR HUB,DT SWISS,350 H350TDDRR32SO9100S,XD FREEHUB,6 BOLT DISC,J-BEND ,SEALED CARTRIDGE BEARING,32H,12MM AXLE,148MM SPACING
-
- Spokes
- DT Swiss Competition, stainless steel, 14g
-
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.3″
-
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 27.5×2.3″
